PicoQuant offers different solutions for time-resolved confocal microscopy. The available systems include single molecule sensitive microscopes with picosecond temporal resolution and super-resolution imaging capabilities as well as upgrade kits for laser scanning microscopes of all major manufacturers that enable time-resolved applications.

MicroTime 200

Time-resolved Confocal Fluorescence Microscope with Unique Single Molecule Sensitivity

  • Complete system with laser combining unit, inverted microscope body, and multichannel detection unit

  • Single molecule sensitivity for excitation between 266 and 900 nm

  • Multiple detector options for up to 6 truly parallel detection channels

  • Multiple applications ranging from imaging to single molecule studies

  • FLIMbee galvo scanner add-on with outstanding flexibility in scanning speed and excellent spatial precision

  • scanning FCS available via line scan in x using FLIMbee galvo scanner


MicroTime 200 STED

Time-resolved Confocal Fluorescence Microscope with Super-resolution Capability

  • Complete confocal STED system based on inverted microscope body

  • Optical resolution below 50 nm

  • Excitation at 640 nm and optionally with additional lasers at 595 nm and 660 nm

  • Supports gated STED (gSTED) and gSTED-FCS

  • FLIMbee galvo scanner add-on with outstanding flexibility in scanning speed and excellent spatial precision

  • scanning FCS available via line scan in x using FLIMbee galvo scanner

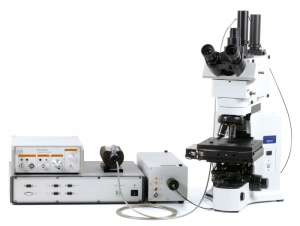

MicroTime 100

Upright Time-resolved Fluorescence Microscope

  • Complete system with laser combining unit, upright microscope body and detection unit

  • Pulsed diode lasers with wavelengths from 375 nm to 810 nm

  • Multiple detector options for up to four detection channels

  • XY-scanning piezo stage for 2D-lifetime imaging


LSM Upgrade Kit

Compact FLIM and FCS Upgrade Kit for Laser Scanning Microscopes


SymPhoTime 64

Fluorescence Lifetime Imaging and Correlation Software

  • Point, 2D, and 3D TTTR data acquisition with online preview of FLIM, FCS, time-traces, or TCSPC histograms

  • FLIM, fast FLIM, FLIM-FRET

  • FCS, FCCS, FLCS, PIE-FCS, coincidence correlation, total correlation

  • FRET, PIE-FRET, fluorescence time traces, anisotropy
